Description

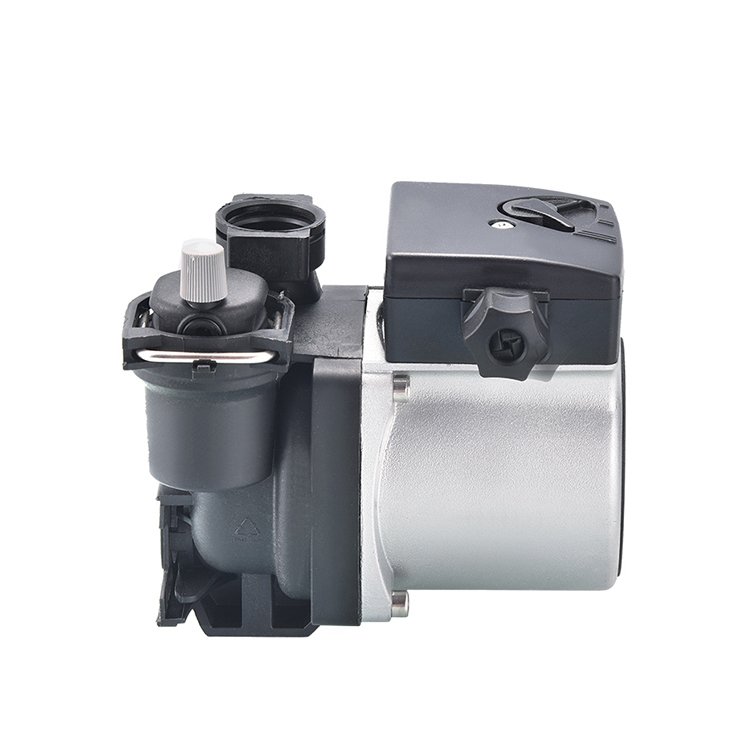

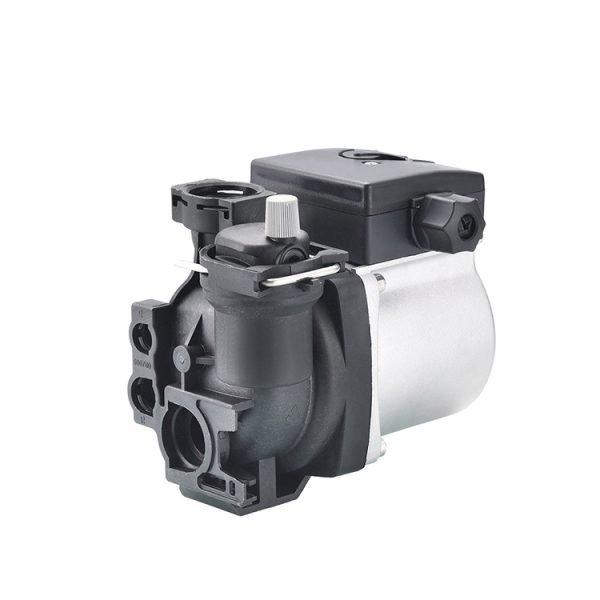

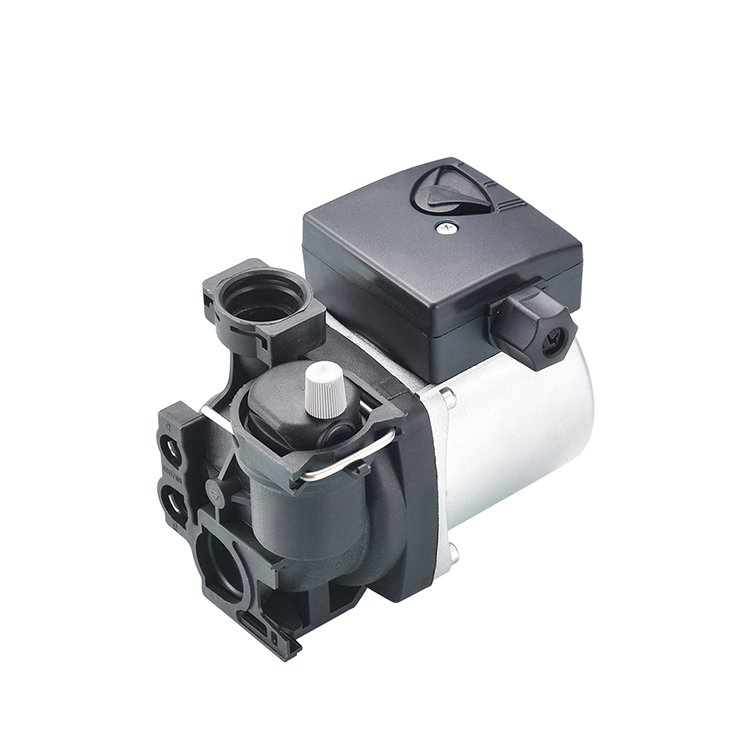

BOILER CIRCULATION PUMP
Wall Hung Gas Boiler Circulating Pump for Water Boosting and Recycling
PA66 NYLON PUMP BPDY
130mm port to port
Manual 3-speed control
Technical Data:
Suitable fluids: i)Heating water to VDI203 ii)heating water iii)water/glycol mixtures
max.mixing ratio1:1
Performance: i)Fluid temperature range : -10-110
Ambient Temperature
Permissible up to 40
Mains power: 220V.50HZ
Motor: Degree of protection IP44 insulation class F
Construction materials
i) Pump body cast iron ii)impeller PP iii)shaft: Ceramic Bearing: Ceramic
Mounting shaft in the horizontal plane
Pump Equipment
i) screwed end single head pump ii) manual 3 speed control iii)Non-overloading single phase motor
Features
1. Shield type without leakage
2. No corrosion and rust
3. No noise without vibration
4. Auto exhaust and free maintenance
